Illustration James Dorrian 2015

MLgrabfromiDrawcopycopy

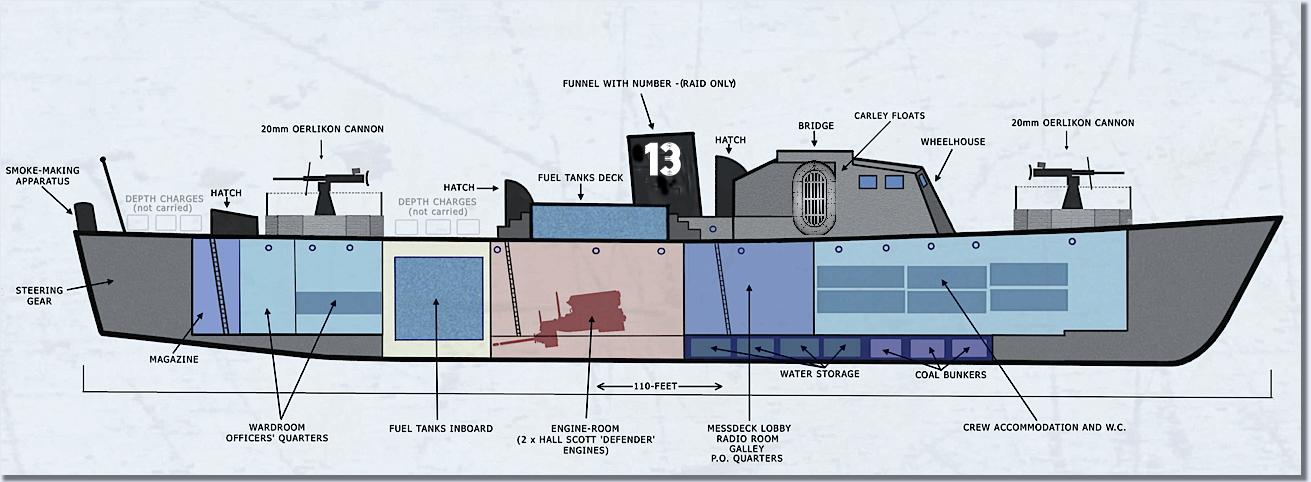

ML 443 as modified for 'CHARIOT' with a single 20mm Oerlikon cannon mounted forward and aft. The number 13 applied for the raid only. Depth-charges were not to be carried, and the dinghy normally stored on deck amidships was removed. Lighter anti-aircraft defences varied from boat to boat, but included post-mounted Lewis-guns amidships and Vickers Gas-Operated machine-guns mounted on the bridge-wings. The deck-mounted fuel tanks occupied most of the space either side of the superstructure, and were negotiated via steps at either end.

item4
item6
item4

DESIGNER - The Fairmile Marine Company

LENGTH - 112'

DISPLACEMENT - 67-80 tons

DRAUGHT - 4' 10" forward: 5' 1/2" aft

POWER - Two Hall-Scott 600 hp 12-cylinder

'Defender' engines, petrol fuelled

SPEED - 16 kts continuous, 21 kts maximum

RANGE - 1,500 nautical miles at 12 kts

FUEL CAPACITY - 2,305 gallons (internal)

STEERING - Lockheed hydraulic

HULL and FRAME CONSTRUCTION - Wood

item4
item6

28th ML Flotilla

ML 298

ML 306

ML 307

ML 341*

ML 443

ML 446

ML 447

ML 457

* (turned back)

item6
item6

20th ML Flotilla

ML 192

ML 262

ML 267

ML 268

7th ML Flotilla

ML 156

ML 160

ML 177

ML 270

item6
item4
item6
ForwardArrow
BackArrow
Houseiconcopy

All material contained in this site is subject to copyright and must not be reproduced in any format without the consent of the relevant copyright holder

The Fairmile 'B-Type' Motor Launch overview

copyforweb

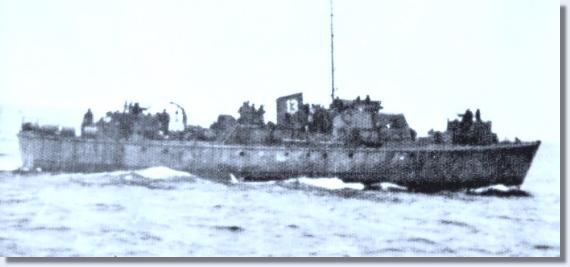

ML 443 photographed during the Raid. Captained by Lieutenant K.M. Horlock, and carrying demolition teams destined for the Power-Station target group, she was one of only three attacking boats to return, successfully reaching Falmouth in company with Lieutenant Tom Boyd's ML 160 and Lieutenant Norman Wallis' ML 307: the 443 later served in the Mediterranean, and was present at the surrender of the Italian Fleet, in 1943.
